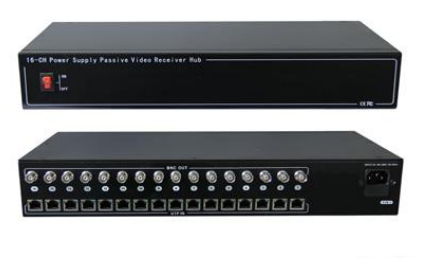

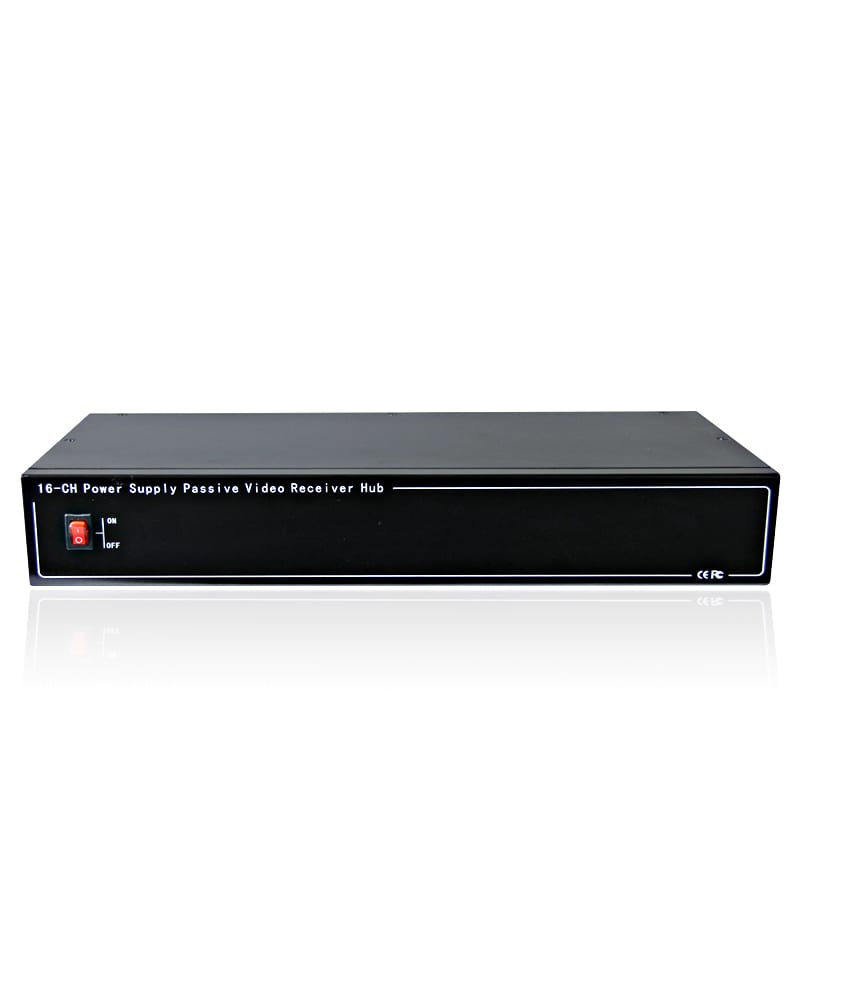

FS-HD4616VPS-36VDC is a sixteen channel video and power hybrid receiver that consolidates all CCTV system cabling using standard EIA/TIA 568A/B structured building wiring. Designed for installation in the IDF/Telecom Closet or MDF/Equipment Room, FS-HD4616VPS-36VDC allows the real time transmission of CCTV video signal via cost-effective Unshielded Twisted Paired (UTP) cable. Baseband (composite) signals of any type are supported. Working with transmitter (convert 36VDC into regulated 12VDC), it can transmit the camera video and power hybrid signal up to 1000ft /305m for 12VDC output camera.
The superior interference rejection and low emissions of the FS-HD4616VPS-36VDC allows video and power signals to co-exist in various environment. Compared with traditional video receiver, FS-HD4604VPS-36VDC has a greatly reduced cost while maintaining improved performance.
- NTSC, PAL & SECAM video format compatible
- Compatible with all HD-TVI, HD-CVI & AHD analogue camera
- Power camera; 300W, Max 1A per channel
- Transmit 36VDC power up to 305m(1000ft) working with
transmitter(converter 36VDC into regulated 12VDC) for 12VDC camera
- Female BNC connector and RJ45 Jack
- Real-time transmission;
- Exceptional interference rejection;
- Built-in TVS for surge protection & ground loop isolation
- Lightning protection design Grade: ?
- Wave Filter Design, Anti-Static Design
- Black galvanized housing
- Rack, wall mountable and desk installation with 4 rubber feet
